How to make a simple Android Live Wallpaper with Libgdx

11 September 2013

Libgdx is a java game engine, but with this game engine you could make an android live wallpaper too. I assume you already know or maybe have used this game engine before. In this tutorial i will show you how to make a simple android live wallpaper template. The result will be an live wallpaper that only have an image as background without animation. You could use this template, put some your work with Libgdx and implement it for your live wallpaper. Okay Let's begin :

I am using the Libgdx library that i downloaded at the beginning of July and Eclipse Juno. Don't forget to use an image that has a power of 2. i was using a 512x512 pixel image.
  1. Make an android project and name it "SimpleLiveWallpaperTemplate".
  2. Import Libgdx library in your project.
  3. Make 3 java class and name it "LiveWallpaperStarter.java", "LiveWallpaperScreen.java" and "LiveWallpaperAndroid.java".
    LiveWallpaperStarter.java
    package com.example.simplelivewallpapertemplate;

    import com.badlogic.gdx.Game;
    public class LiveWallpaperStarter extends Game{

     @Override
     public void create() {
      setScreen(new LiveWallpaperScreen(this));
     }

    }

    LiveWallpaperScreen.java
    package com.example.simplelivewallpapertemplate;

    import com.badlogic.gdx.Game;
    import com.badlogic.gdx.Gdx;
    import com.badlogic.gdx.Screen;
    import com.badlogic.gdx.graphics.GL10;
    import com.badlogic.gdx.graphics.GLCommon;
    import com.badlogic.gdx.graphics.OrthographicCamera;
    import com.badlogic.gdx.graphics.Texture;
    import com.badlogic.gdx.graphics.Texture.TextureFilter;
    import com.badlogic.gdx.graphics.g2d.SpriteBatch;
    import com.badlogic.gdx.graphics.g2d.TextureRegion;

    public class LiveWallpaperScreen implements Screen{
     Game game;

     OrthographicCamera camera;
        Texture textureBg;
        TextureRegion background;
     SpriteBatch batcher;

     public LiveWallpaperScreen(final Game game) {
      this.game = game;

      camera = new OrthographicCamera(320, 480);
      camera.position.set(camera.viewportWidth / 2, camera.viewportHeight / 2, 0);

      textureBg = new Texture("background.jpg");
      textureBg.setFilter(TextureFilter.Linear, TextureFilter.Linear);
      background = new TextureRegion(textureBg, 0, 0, 256, 512);
      batcher = new SpriteBatch();
     }

     @Override
     public void dispose() {
      // TODO Auto-generated method stub

     }

     @Override
     public void hide() {
      // TODO Auto-generated method stub

     }

     @Override
     public void pause() {
      // TODO Auto-generated method stub

     }

     private void draw(float delta) {
      GLCommon gl = Gdx.gl;
      gl.glClearColor(0, 0, 0, 1);
      gl.glClear(GL10.GL_COLOR_BUFFER_BIT);
      camera.update();

      batcher.setProjectionMatrix(camera.combined);
            batcher.begin();
            batcher.draw(background, 0, 0,camera.viewportWidth, camera.viewportHeight);
      batcher.end();
     }

     private void update(float delta) {
     }

     @Override
     public void render(float delta) {
      update(delta);
      draw(delta);
     }

     @Override
     public void resize(int width, int height) {
      // TODO Auto-generated method stub

     }

     @Override
     public void resume() {
      // TODO Auto-generated method stub

     }

     @Override
     public void show() {
      // TODO Auto-generated method stub

     }
    }


    LiveWallpaperAndroid.java
    package com.example.simplelivewallpapertemplate;

    import android.util.Log;

    import com.badlogic.gdx.ApplicationListener;
    import com.badlogic.gdx.Game;
    import com.badlogic.gdx.backends.android.AndroidApplicationConfiguration;
    import com.badlogic.gdx.backends.android.AndroidLiveWallpaperService;
    import com.badlogic.gdx.backends.android.AndroidWallpaperListener;

    public class LiveWallpaperAndroid extends AndroidLiveWallpaperService {

     @Override
     public void onCreateApplication () {
      super.onCreateApplication();

      AndroidApplicationConfiguration config = new AndroidApplicationConfiguration();
      config.useGL20 = false;
      config.useCompass = false;
      config.useWakelock = false;
      config.useAccelerometer = false;
      config.getTouchEventsForLiveWallpaper = true;

      ApplicationListener listener = new LiveWallpaperStarter();
      initialize(listener, config);
     }

     public static class MyLiveWallpaperListener extends LiveWallpaperScreen implements AndroidWallpaperListener {

      public MyLiveWallpaperListener(Game game) {
       super(game);
       // TODO Auto-generated constructor stub
      }

      @Override
      public void offsetChange (float xOffset, float yOffset, float xOffsetStep, float yOffsetStep, int xPixelOffset, int yPixelOffset) {
       Log.i("LiveWallpaper test", "offsetChange(xOffset:"+xOffset+" yOffset:"+yOffset+" xOffsetSteep:"+xOffsetStep+" yOffsetStep:"+yOffsetStep+" xPixelOffset:"+xPixelOffset+" yPixelOffset:"+yPixelOffset+")");
      }

      @Override
      public void previewStateChange (boolean isPreview) {
       Log.i("LiveWallpaper test", "previewStateChange(isPreview:"+isPreview+")");
      }
     }
    }

  4. Edit your AndroidMafest.xml file.
  5. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
        package="com.example.simplelivewallpapertemplate"
        android:versionCode="1"
        android:versionName="1.0" >

        <uses-sdk
            android:minSdkVersion="8"
            android:targetSdkVersion="17" />
     <uses-feature android:name ="android:software.live_wallpaper" android:required="false"/>
        <application
            android:allowBackup="true"
            android:icon="@drawable/ic_launcher"
            android:label="@string/app_name"
            android:theme="@style/AppTheme" >
            <service android:name =".LiveWallpaperAndroid"
             android:label = "@string/app_name"
             android:icon = "@drawable/ic_launcher"
             android:permission = "android.permission.BIND_WALLPAPER" >
                <intent-filter>
                    <action android:name="android.service.wallpaper.WallpaperService" />
                </intent-filter>
                <meta-data android:name ="android.service.wallpaper"
                 android:resource ="@xml/livewallpaper" />
            </service>
        </application>

    </manifest>
  6. Make a folder in resource folder and name it "xml", then make a xml file and name it "livewallpaper.xml".
    <?xml version="1.0" encoding="utf-8"?>
    <wallpaper
     xmlns:android ="http://schemas.android.com/apk/res/android"
     android:thumbnail = "@drawable/ic_launcher"
     android:description = "@string/app_name"  />

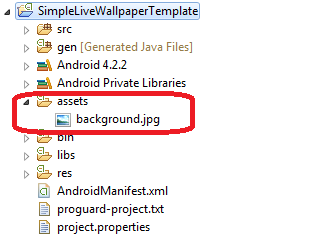

  7. Don't forget to put your image in assets folder

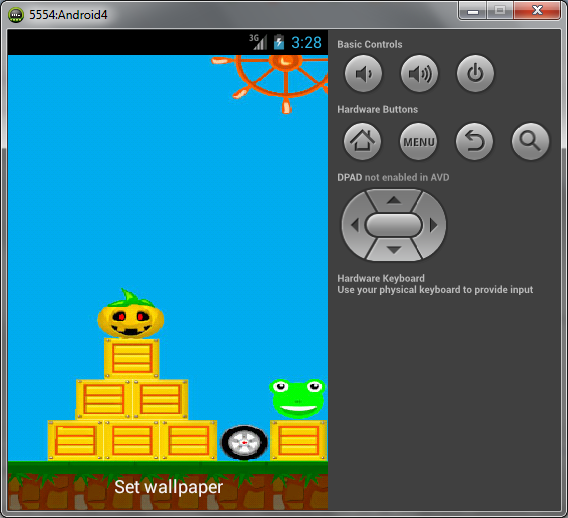

  8. The last things build your project and see the result.
You can download the source code here, Easy isn't it? It would more easy if you know Libgdx before. You can try my live wallpaper that i make with Libgdx game engine here and here.

8 comments

  1. Hey there, great tutorial, I really appreciate it. I have one question, how do I set this up so that I can develop the wallpaper on the desktop, without having to send it to a device or emulator, like a normal libgdx project? I have the projects set up like normal, a main project, desktop project, and android project. When I deploy the android project to my device, it shows the background image as expected. When I run the desktop project, I just get a window with black instead of the image. I would of course prefer to develop on the desktop for speed purposes and to easily test different resolutions. Any suggestions? Thanks.

    ReplyDelete
  2. You could copy LiveWallpaperStarter.jave and LiveWallpaperScreen to your desktop LibGDX project environment and change LiveWallpaperAndroid.java to this

    package com.example.simplelivewallpapertemplate;

    import com.badlogic.gdx.backends.lwjgl.LwjglApplication;
    import com.badlogic.gdx.backends.lwjgl.LwjglApplicationConfiguration;

    public class DesktopStarter {
    public static void main (String[] argv) {
    LwjglApplicationConfiguration cfg = new LwjglApplicationConfiguration();
    cfg.title = "Live Wallpaper";
    cfg.useGL20 = false;
    cfg.width = 320;
    cfg.height = 480;

    new LwjglApplication(new StarterClass(), cfg);
    }
    }

    ReplyDelete
  3. I'm a little concerned that I have to copy/paste the contents of those source files when deploying to the device. But it works. Thanks!

    ReplyDelete
  4. hiii I have one question. How can I off rotation????????????

    ReplyDelete
    Replies
    1. i don't know how to off rotation too

      Delete
  5. really nice post , thank u very much !
    using your template i have created a live wallpaper

    https://play.google.com/store/apps/details?id=com.bitdroid.flw

    ReplyDelete
